Tips for Selecting and Installing Screws in Metal Roofing

Metal roof screw patterns refer to specific arrangements and spacing of screws used to fasten metal roofing panels to underlying structures. Screw patterns significantly contribute to the structural integrity and longevity of metal roofs.Proper screw placement helps distribute loads evenly, prevents water leaks, and allows for the metal’s thermal expansion and contraction. By choosing and installing a consistent screw pattern, you can make metal roofs durable and weather resistant.

The Importance of Metal Roof Screw Patterns

Screw patterns benefit metal roofs in several ways.

• Prevent excess stress on panels and allow engineers to allocate loads optimally
• Create tight seals around screws to prevent water leaks
• Reduce the risk of panel warping or loosening

Factors Affecting Fastener Installation

When choosing screw patterns for metal roof installations, consider these factors:

• Manufacturer Recommendation: Always check with the panel manufacturer for recommended fastener type, sequence, and spacing. Their recommendation may vary by panel type and project demographics.
• Roof Design: The complexity and shape of the roof can impact fastener placement.
• Material Type: Different metals and panel types need specific screw patterns to keep attachments secure. Corrugated metal panels use exposed fasteners with specific screw spacing while standing seam roofs use concealed fasteners and clips.
• Substructure: The substructure under the metal panel impacts fastener selection. Metal-to-metal applications, such as installing metal panels over metal purlins, require a self-drilling fastener, while a different fastener is used when installing metal panels over purlins or OSB sheathing.
• Climate: Local weather conditions, such as wind and snow loads, may affect the fastening pattern to enhance durability.
• Building Codes: Make sure the screw pattern complies with regional building regulations to meet safety and performance standards.

Guidelines for Fastener Installation

Here’s how you can determine the appropriate screw pattern for your metal roof installation:

• Alignment: To ensure accurate performance (and optimize aesthetics!), fasteners must be installed in the same line across the panel width.

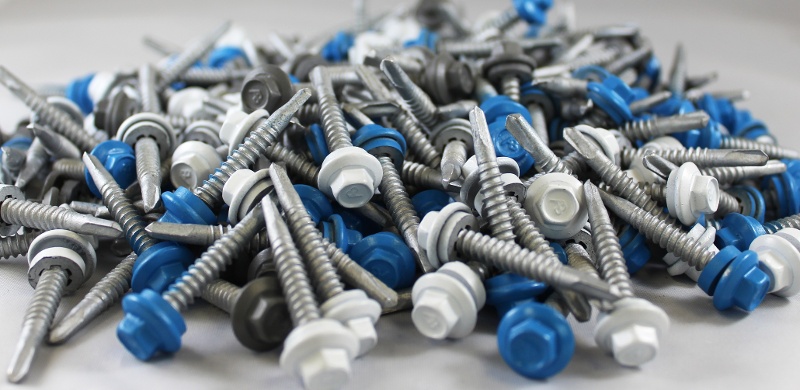

• Fastener Types: Use long-life fasteners — stainless steel capped — with bonded heads for durability.
• Ensure Proper Fastener Installation: Seat washers correctly and use the appropriate screw gun RPM. This method prevents corrosion and leaks, resulting in a secure, long-lasting metal roof.
• Over-Driving: Avoid over-driving screws — it can dimple the panel around the screw, causing water pooling and improper washer seating. Overdriving can also destroy rubber washers.
• Under-Driving: Alternatively, under-driving screws can allow water to seep underneath the unseated washer, causing leaks.
• Straight Install: Ensure the fastener penetrates the substructure vertically (instead of angled).
• Avoid Dissimilar Metals/Corrosion: Use fasteners similar in metal compositions to the roof material. Stainless steel is best for corrosive environments, while aluminum and treated lumber need specific considerations.
• Panel High vs. Low: Based on manufacturer guidance, consider placing the fastener in the high or low part of the panel.
• Standing Seam Applications: For standing seam applications, fasteners not exposed to the exterior do not need to be long-lived or have washers. Consult the manufacturer’s installation manual for recommendations.
• Building Codes: Adhere to local building codes to ensure the metal roof’s safety, legality, and durability.

Tips for Proper Screw Installation

Follow these tips to prevent roof leaks, wind uplift, and other issues:

• Follow Manufacturer Guidelines: Adhere to the manufacturer’s instructions for screw placement and spacing.
• Use Quality Fasteners: Select screws with appropriate washers and corrosion-resistant materials.
• Pre-drill Holes: For self-tapping style fasteners, pre-drill screw holes to ensure alignment and prevent damage to the metal panel.
• Check for Alignment: Use chalk lines or guides to maintain consistent screw lines.
• Secure Screws Properly: Tighten screws without overdriving to avoid damaging washers.
• Inspect Regularly: Regularly check the roof for loose screws or signs of wear.

Fastener Maintenance and Inspection

Regular maintenance and fastener inspection are vital for metal roofs' long-term performance. Key maintenance steps include:

• Visual Inspections: Check for loose or missing screws and any signs of corrosion or wear. Replace missing screws with larger diameter screws to maintain tight fastenings.
• Tightening Screws: Securely fasten screws without overdriving.
• Clearing Debris: Remove leaves, dirt, and other debris, such as metal shavings from self-drilling screws, from the roof surface to avoid rust and stains.
• Sealant Checks: Inspect and replace any degraded sealants around screws.
• Seasonal Reviews: Conduct inspections after severe weather events to assess potential damage.

Regular upkeep ensures the roof remains secure, watertight, and aesthetically pleasing.
